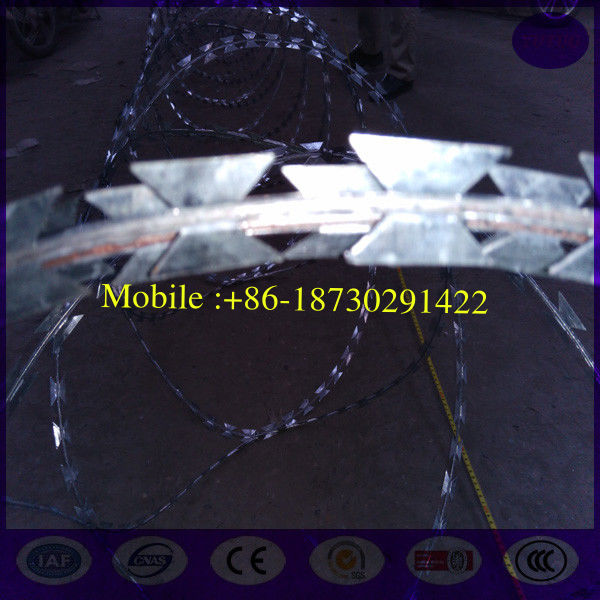

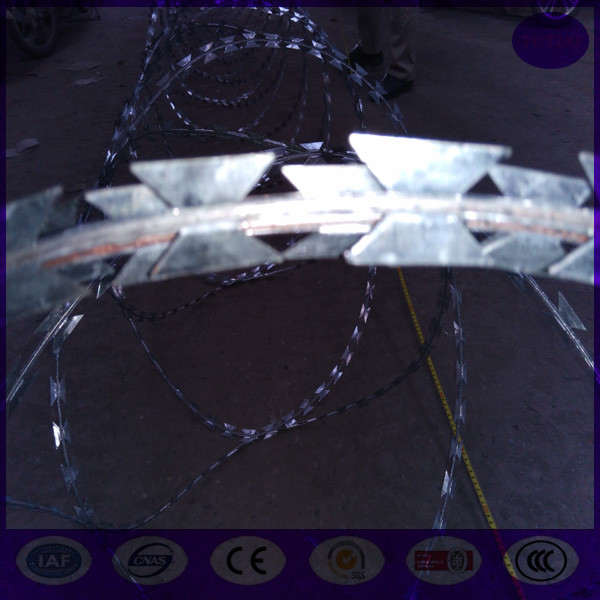

700mm Diameter 5 Clips BTO-30 stainless steel cross type Concertina Razor Barbed Wire

Product Details:

Place of Origin:	Hebei,china
Brand Name:	XKh
Certification:	iso,ce
Model Number:	Razor barbed wire

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Price based on quantity
Packaging Details:	waterproof paper inside , woven bag out side ,pallet or cartn also available
Delivery Time:	7 days
Payment Terms:	L/C,TT
Supply Ability:	4 cotainers /week

Contact Now

Detailed Product Description

Material:	Hot Dipped Galvanized Iron /steel Wire With Steel Sheet	Core Wire Thickness:	2mm-2.5mm
Blade Thickness:	0.35mm-0.5mm	Type:	BTO-10,BTO-22,BTO-28,BTO-30,CBT-60,CBT-60
Coil Diameter:	300mm,350mm,400mm,450mm,500mm,550mm,600mm,700mm,900mm,1050mm	Weight:	3 Kg - 15 Kg /coil
Surface Treatment:	Glavanized , PVC Coating ,Epoxy	Machine:	HIgh Speed Punching Machine

Descripition of razor barbed wire

Material: High carbon steel, stainless steel

Kinds of razor wire: 1) Single coil razor wire 2) Cross coil razor wire 3) Straight line razor wire 4) Razor wire flat wrap coils 5) Razor wire fencing

Specifications:

Razor blade type and specification
Reference Number	Thickness (mm)	Wire Dia (mm)	Barb Length (mm)	Barb Width (mm)	Barb spacing (mm)
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-15	0.5±0.05	2.5±0.1	15±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-30	0.5±0.05	2.5±0.1	30±1	18±1	45±1
CBT-25	0.5±0.05	2.5±0.1	25±1	16±1	40±1
CBT-60	0.5±0.05	2.5±0.1	60±1	32±1	100±1
CBT-65	0.5±0.05	2.5±0.1	65±1	21±1	100±1

Barbed Tape Wire Specification
Outside Diameter	No.of Loops	Standard Length per Coil	Type	Notes
300mm	33	4-5m	CBT-60.65	Singlw coil
450mm	33	7-8m	CBT-60.65	Single coil
500mm	56	12-13m	CBT-60.65	Single coil
700mm	56	13-14m	CBT-60.65	Single coil
9600mm	56	14-15m	CBT-60.65	Single coil
4500mm	56	8-9m(3 clips)	BTO-10.12.18.22.28.30	Cross type
500mm	56	9-10m(3 clips)	BTO-10.12.18.22.28.30	Cross type
600mm	56	10-11m(3 clips)	BTO-10.12.18.22.28.30	Cross type
600mm	56	8-10m(5 clips)	BTO-10.12.18.22.28.30	Cross type
700mm	56	10-12m(5 clips)	BTO-10.12.18.22.28.30	Cross type
800mm	56	11-13m(5 clips)	BTO-10.12.18.22.28.30	Cross type
9000mm	56	12-14m(5 clips)	BTO-10.12.18.22.28.30	Cross type
960mm	56	13-15m(5 clips)	BTO-10.12.18.22.28.30	Cross type
980mm	56	14-16m(5 clips)	BTO-10.12.18.22.28.30	Cross type

700mm Diameter 5 Clips BTO-30 stainless steel cross type Concertina Razor Barbed Wire

Usage of razor barbed wire : on ship , fence as barrier

700mm Diameter 5 Clips BTO-30 stainless steel cross type Concertina Razor Barbed Wire

Please contact us - Ms Alisa Zhou

Alisa zhou - sample preparing for our client :

700mm Diameter 5 Clips BTO-30 stainless steel cross type Concertina Razor Barbed Wire

Alisa Zhou -charge loading and export matters for Saudi Arab :

700mm Diameter 5 Clips BTO-30 stainless steel cross type Concertina Razor Barbed Wire

Alisa Zhou

Client 's goods is our goods , we always care goods loading and safety to our client 's hands .

E-mail :alisawiremesh@hotmail.com

Mobile : +86 18730291422

Skype :alisazhouwiremesh
