Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire

Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire

    • Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire
    • Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire
  • Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire

    Product Details:

    Place of Origin: Hebei Province,china
    Brand Name: Xingkuan
    Certification: ISO9001:2000,CE,SGS,COC
    Model Number: Razor barbed wire

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 roll
    Price: Price based on quantity
    Packaging Details: waterproof paper inside , woven bag out side ,pallet or cartn also available
    Delivery Time: 7 days
    Payment Terms: L/C,TT
    Supply Ability: 4 cotainers /week
    Contact Now
    Detailed Product Description
    Material: Hot Dipped Galvanized Iron /steel Wire With Steel Sheet Core Wire Thickness: 2mm-2.5mm
    Blade Thickness: 0.35mm-0.5mm Type: BTO-10,BTO-22,BTO-28,BTO-30,CBT-60,CBT-60
    Coil Diameter: 300mm,350mm,400mm,450mm,500mm,550mm,600mm,700mm,900mm,1050mm Weight: 3 Kg - 15 Kg /coil
    Surface Treatment: Glavanized , PVC Coating ,Epoxy Machine: HIgh Speed Punching Machine

        Cheap China Sharp bladeCBT-65 Razor Wire

    Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire



    CBT-65 - Material. HD Galvanized Zinc as below photo
    Thickness: 0.60 mm +/- 0.05 mm
    Wire diam: 2.50 mm +/- 0.05 mm
    Bars length: 65 mm +/- 1 mm
    Bars spacing: 100 mm +/- 2 mm
    450 mm diameter and 35 rings
    Straight length: 46.5 mt per roll after pull open
    Standard covered length: 10 mt
    Inner packing: in plastic film
    Outer packing: in weaving brag strip.

    Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire

    1. Introduction of China Sharp blade CBT-65 Razor Wire with low price

    Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

    2. Specification of China Sharp blade CBT-65 Razor Wire with low price

    Material:

    hot dipped (electro) galvanized wire and stainless steel wire as core wire

    hot dipped (electro) galvanized sheet and stainless steel sheet as blade

    Surface Treatment : galvanized or PVC coated

    Core wire diameter:  usually 2.5mm, can be customized

    Razor thickness: 0.3-0.6mm

    Barb length:  11-67mm

    Barb width:  14-23mm

    Barb spacing:  25--102mm

    Common Types:  BTO-10,  BTO-20, BTO-22, BTO-28, CBT-65 etc.



    Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire

    Razor Barbed Tape Wire Specification

    Outside Diameter

    No. of Loops

    Standard Length per Coil

    Type

    Notes

    450mm

    33

    7-8M

    CBT-60.65

    Single coil

    500mm

    56

    12-13M

    CBT-60.65

    Single coil

    700mm

    56

    13-14M

    CBT-60.65

    Single coil

    960mm

    56

    14-15M

    CBT-60.65

    Single coil

    450mm

    56

    8-9M (3 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    500mm

    56

    9-10M (3 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    600mm

    56

    10-11M (3 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    600mm

    56

    8-10M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    700mm

    56

    10-12M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    800mm

    56

    11-13M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    900mm

    56

    12-14M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    960mm

    56

    13-15M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    980mm

    56

    14-16M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire

    Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire

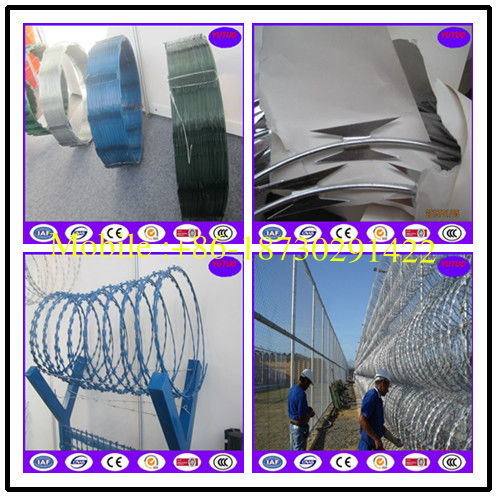

    Packing of China Sharp blade CBT-65 Razor Wire with low price:

    Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire

    Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire

    Barb thickness: 0.6mm Barb width: 21mm 2.5mm CBT65 razor wire

    Application ofChina Sharp blade CBT-65 Razor Wire with low price

      razor type barbed wire is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security.
