High tensile galvanized sharp razor barbed wire for security fence
Material: high quality low carbon steel wire / Hot dipped Galvanzied Iron Wire
Usage: Mainly used for the importance safeguard, such as the frontier defense line wire, sentry, prison, military base and airport, etc.
Specification: BTO-10,12,18,22,28,30,CBT-60,65.
1.Razor thickness:0.5mm
2.Wire diameter:2.5mm
3.Razor width : 15 mm
4.Razor length: 22 mm
5.Outside diameter of roll:600 mm
6.Number of loops:33--102
7.Standard spreading length per roll:8m --16m
8.Razor barbed type : cross type

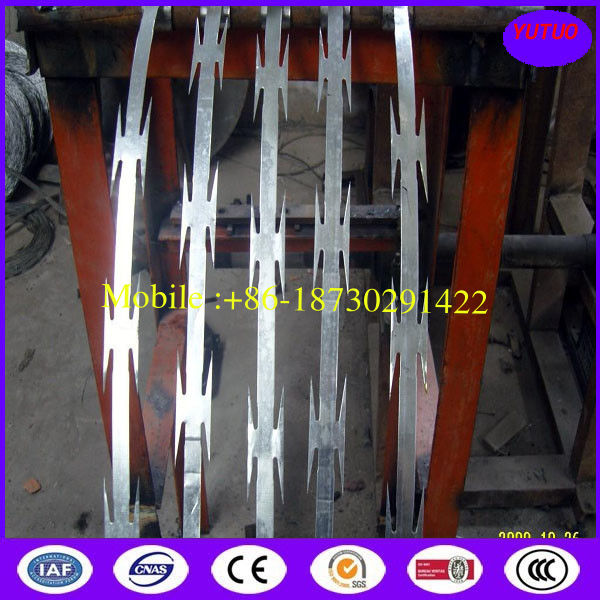

Picture show :
1. cross wire type - with 4 handles
2. Flat razor wire :
|
Reference Number
|
Thickness
|
Wire Dia
|
Barb Length
|
Barb Width
|
Barb spacing
|
|
BTO-10
|
0.5±0.05
|
2.5±0.1
|
10±1
|
13±1
|
25±1
|
|
BTO-12
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
25±1
|
|
BTO-18
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
35±1
|
|
BTO-22
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
36±1
|
|
BTO-28
|
0.5±0.05
|
2.5
|
28
|
15
|
46±1
|
|
BTO-30
|
0.5±0.05
|
2.5
|
30
|
18
|
46±1
|
|
CBT-65
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
101±2
|
.
|
Barbed Tape Wire Specification:
|
|
Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450mm
|
33
|
8M
|
CBT-65
|
Single coil
|
|
500mm
|
41
|
10M
|
CBT-65
|
Single coil
|
|
700mm
|
41
|
10M
|
CBT-65
|
Single coil
|
|
960mm
|
53
|
13M
|
CBT-65
|
Single coil
|
|
500mm
|
102
|
16M
|
BTO-10.15.22
|
Cross type
|
|
600mm
|
86
|
14M
|
BTO-10.15.22
|
Cross type
|
|
700mm
|
72
|
12M
|
BTO-10.15.22
|
Cross type
|
|
800mm
|
64
|
10M
|
BTO-10.15.22
|
Cross type
|
|
960mm
|
52
|
9M
|
BTO-10.15.22
|
Cross type
|
| Notes: Standard products are shown in the tables above, special specifications available on request. Standard materials are either galvanized or stainless steel. |
Packing of Razor wire :
1.Waterproof paper inside ,woven bag outside
2. with good wood /metal pallet
3.Carton box
