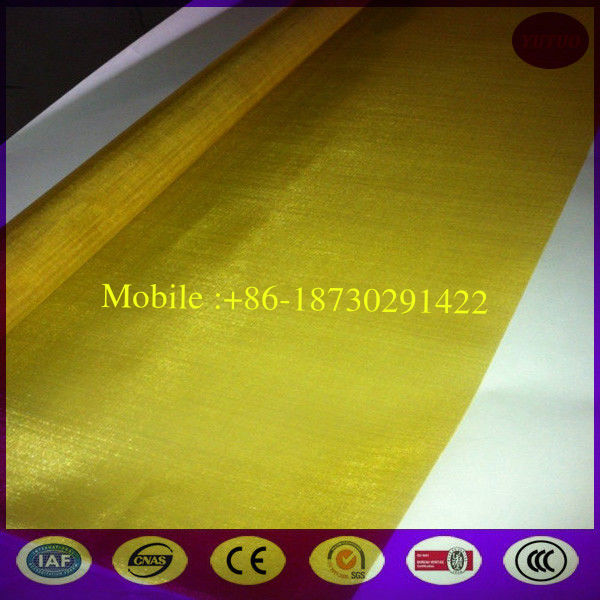

80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh

80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh

    • 80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh
    • 80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh
    • 80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh
    • 80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh
    • 80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh
  • 80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh

    Product Details:

    Place of Origin: china factory
    Brand Name: xk highui
    Certification: ISO9001:2000,CE,SGS,COC
    Model Number: brass mesh

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: waterproof paper inside ,bubble , paper core , wooden case
    Delivery Time: 7 days after confirm order
    Payment Terms: L/C,TT
    Supply Ability: stock
    Contact Now
    Detailed Product Description

    80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh

    Product Description

    Material : Brass wire

    Weave type : Plain weave

    Material

    Brass Wire (Cu: 65% , Zn:35%)

    Wire Diameter (D)

    0.12mm (0.005”)

    Aperture (L)

    0.2mm (0.008”)

    Open Area

    38.69%

    Weight

    0.04 kgs/m2

    Roll Width

    1.0m,1.2m,1.5m or as customers’request.

    Roll Length

    30m, 60m



    Production range of brass screen fabric:

    (1) wire diameter: 0.04-1mm

    (2) mesh counts: 3-200 mesh

    (3) common roll width:1m, 1.2m, 1.5m, 1.8m, 2m

    (4) common roll length:30m, 50m, 100m

    standard roll width:1.0m,   standard roll length: 30m



    Other size :

    Mesh

    Wire Dia. (MM) Opening(mm)
     SWG  mm  inch
    6mesh 22 0.711 0.028 3.522
    8mesh 23 0.610 0.024 2.565
    10mesh 25 0.508 0.020 2.032
    12mesh 26 0.457 0.018 1.660
    14mesh 27 0.417 0.016 1.397
    16mesh 29 0.345 0.014 1.243
    18mesh 30 0.315 0.012 1.096
    20mesh 30 0.315 0.0124 0.955
    22mesh 30 0.315 0.0124 0.840
    24mesh 30 0.315 0.0124 0.743
    26mesh 31 0.295 0.0116 0.682
    28mesh 31 0.295 0.0116 0.612
    30mesh 32 0.247 0.011 0.573
    32mesh 33 0.254 0.010 0.540
    34mesh 34 0.234 0.0092 0.513
    36mesh 34 0.234 0.0092 0.472
    38mesh 35 0.213 0.0084 0.455
    40mesh 36 0.193 0.0076 0.442
    42mesh 36 0.193 0.0076 0.412
    44mesh 37 0.173 0.0068 0.404
    46mesh 37 0.173 0.0068 0.379
    48mesh 37 0.173 0.0068 0.356
    50mesh 37 0.173 0.0068 0.335
    60X50mesh 36 0.193 0.0076 -
    60X50mesh 37 0.173 0.0068 -
    60mesh 37 0.173 0.0068 0.250
    70mesh 39 0.132 0.0052 0.231
    80mesh 40 0.122 0.0048 0.196
    90mesh 41 0.112 0.0044 0.170
    100mesh 42 0.012 0.004 0.152
    120X108mesh 43 0.091 0.0036 -
    120mesh 44 0.081 0.0032 0.131
    140mesh 46 0.061 0.0024 0.120
    150mesh 46 0.061 0.0024 0.108
    160mesh 46 0.061 0.0024 0.098
    180mesh 47 0.051 0.002 0.090
    200mesh 47 0.051 0.002 0.076

    80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh

      80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh

    80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh

    Characteristics:
    (1) non-magnetic, wear resistance
    (2) acid and alkali resistance, good ductility
    (3)good conductivity, good heat transfer performance


    Application:

    (1) screening a variety of particles,powder, porcelain clay, glass,the radio signal shielding.

    (2) filtering liquid and gas,chemicals.

    (3)for electronic equipment , customs, aviation and space, information industry, machinery, fi

    nance etc.

    80 mesh ,wire dia 0.12mm, aperture 0.2mm plain weave brass wire mesh
