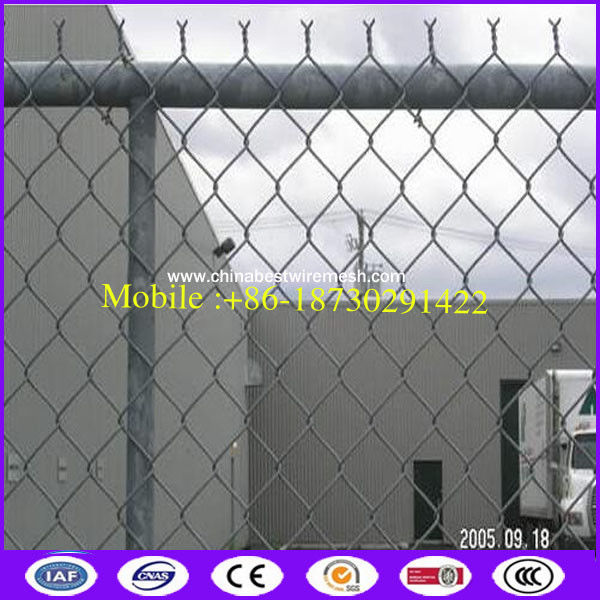

ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating

ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating

    • ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating
    • ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating
    • ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating
    • ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating
  • ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating

    Product Details:

    Place of Origin: Hebei,china
    Brand Name: XKh
    Certification: iso,ce
    Model Number: chain link fence in diamond hole for fence usage

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: wven bag or film in both end , pallet is available
    Delivery Time: 7 days after confirm order
    Payment Terms: L/C,TT
    Supply Ability: 1 contaier /5 days
    Contact Now
    Detailed Product Description
    Material: Galvanized Steel Wire, Galvanized Iron Wire Surface: Electro Galvanized / Hot Dipped Galvanized
    Hole Shape: Diaomond Hole Opening: 25mmx25mm,40mmx40mm,50mmx50mm,60mmx60mm,80mx80mm
    Wire Diameter: 1.6mm-4mm(2.5mm, 3.05mm, 3.76mm, 4.88mm) Width: 0.5m,0.9m,1m,1.2m,1.5m,1.6m,1.8m,2m,2.5m ,3m
    Length: 8m,10m,15m,20m,25m,30m,50m Appliaction: Fence , Farm , Zoo ,warehouse
    Type: Chain Link Mesh Packing: Wrapped With PP Bags At Both Ends(palletized Optional)

    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating



    Description :



    1.Item Name : chain link fence /chain-wire fence ,cyclone fence ,hurricane fence ,diamond mesh fence

    2.woven way : zig-zag pattern/diamond mesh pattern - the wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other.

    3.Size : typically produced in 50' rolls’ length(15.24m),

               the most popular type is 6, 9, 11 gauge wire with 2x2 inches(50x50mm) mesh size,

    4.Galvanized :The fabric is galvanized with a 1.2 oz.(366 grams) coating meets ASTM A 392-03 Class I and we also offer some sizes with a 2.0 oz.(610 grams) zinc coating meets ASTM A 392 Type I (Class II).



    Nominal coated

    wire diameter

    Available variance Zinc coating weight, min. Breaking strength
    minimum
    Class 1 Class 2
    ga inch mm inch mm oz/ft2 g/m2 oz/ft2 g/m2 lbf Newtons
    6 0.192 4.88 +/- 0.005 +/-0.13 1.20 366 2.00 610 2,170 9,650
    9 0.148 3.76 +/- 0.005 +/-0.13 1.20 366 2.00 610 1,290 5,740
    11 0.120 3.05 +/- 0.005 +/-0.13 1.20 366 x x 380 1,690



    A typical specification list of 9 gauge chain link fence fabric:



    Chain Link Fence Fabric - 9 Gauge Residential and Commercial Galvanized
    Fabric
    Galvanized
    9 gauge
    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating
    Code Size
    (Mesh x Gauge x Height)
    Ends
    CL-9X36-G 2 x 9 x 36 KxK
    CL-9X42-G 2 x 9 x 42 KxK
    CL-9X48-G 2 x 9 x 48 KxK
    CL-9X60-G 2 x 9 x 60 KxK
    CL-9X72-G 2 x 9 x 72 KxB
    CL-9X84-G 2 x 9 x 84 KxB
    CL-9X96-G 2 x 9 x 96 KxB
    CL-9X120-G 2 x 9 x 120 KxB
    CL-9X144-G 2 x 9 x 144 KxB
    PVC Coated Chain Link Fence - 9 Gauge

    PVC Coated
    9 gauge

    *Colors depicted not exact



    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating





































    Size
    (Mesh x Gauge x Height)
    Ends Weight
    Per 50'
    2 x 9 x 36 KxK 53 lbs
    2 x 9 x 42 KxK 63 lbs
    2 x 9 x 48 KxK 70 lbs
    2 x 9 x 60 KxK 88 lbs
    2 x 9 x 72 KxB 105 lbs
    2 x 9 x 84 KxB 123 lbs
    2 x 9 x 96 KxB 140 lbs
    2 x 9 x 120 KxB 173 lbs
    2 x 9 x 144 KxB 208 lbs
    1-3/4 x 9 x 120 KxB 198 lbs
    1-3/4 x 9 x 144 KxB 238 lbs
    1. Although galvanized silver chain link fences are very popular, many customers have chosen color chain link fence systems to accentuate siding, roofing, and trim colors on houses and businesses. There are two types of vinyl coating(PVC coating) based on the thickness: extruded and adhered and fused and bonded. Dark green(RAL 6005) chain link fence is the most popular one among a lot of colors. Extruded and bonded chain link, always refer to as 'heavy' vinyl chain link fence is also an option.



      Extruded vinyl coated chain link fence is by far the most popular kind of chain link fence available in colors. It is typically the least expensive too. However, some quality conscious customers also prefer fused and bonded fence fabric.

    2.

      Chain Link Fence 's Edge :

      . Ends: KxK(Knuckle x Knuckle), KxB(Knuckle x Barb); 2. Size Column: mesh size in inches x gauge of wire x height of fence in inches;

    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating









    Chain Link Fence Characteristics:

    The mesh is even in size and smooth in surface;

    The weaving is simple, artistic and practical;

    The wire is thicker with high quality, corrosion-resisting, long life uses and strong practicability.



    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating



    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating



    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating



    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating

    Chain Link Fence Uses:

    1) As fences for playground, gardens, super highway, railway, airport, residence, etc.

    2) AS fences to protect and support seawall, slope, road and bridge, reservoir and other civil engineering.

    3) Link chain fence is also used in breeding of animals.



    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating



    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating

    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating



    Competitive Advantage:

    1. Convenience and flexiblity for installation along the landscape.
    2. The low cost is good for mass usage.
    3. It provides a 15 year guarantee.
    4. The fence is a versatile and easily erected form of fencing.
    5.The products with galvanized and PVC coated treatment have a good looking and performance of rust resistance.
    6.A further advantage is transparent performance.As the open weave, chain link fences do not obscure sunlight so you can enjoy the bright view. One also can make a chain link fence semi-opaque by inserting slats into the mesh.

    ASTM 392 standard galvanized chain link fence with posts and accessories, 610 grams zinc coating
